Home >   Course Catalog >   The Anatomy of a Typical Portable Extinguisher

Watch Course Preview

The Anatomy of a Typical Portable Extinguisher Training Short

Watch Course Preview

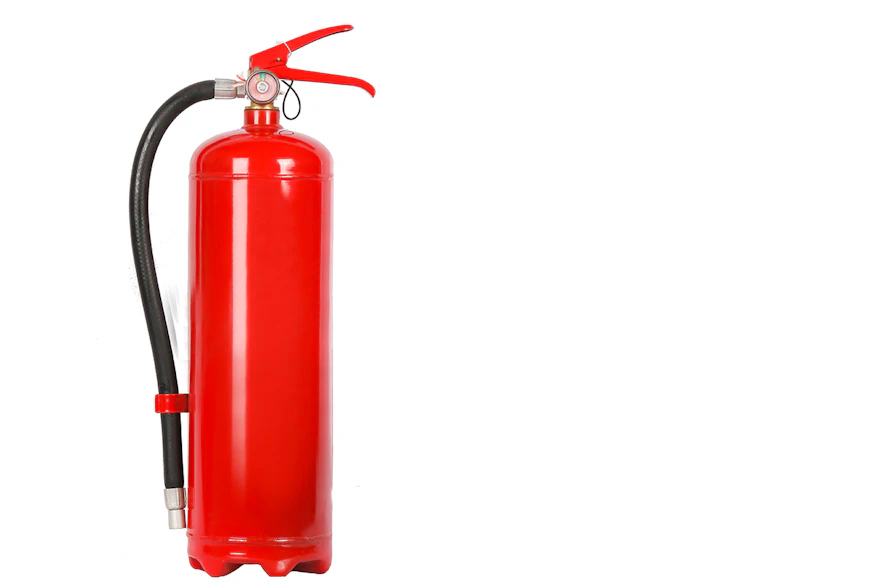

This course dissects the essential components of a portable fire extinguisher, including the safety pin, pressure gauge, and discharge nozzle.

2 minutes   |   SKU: ATS151-3    |    Language(s): EN    |    Produced 2025

SKU:

ATS151-3

Language(s):

EN

Updated:

2025

Length

2 minutes

Training Objectives

Identify the main components of a portable fire extinguisher (handle, nozzle, tank)
Distinguish between common extinguishing agents like dry chemical and CO2
Explain the critical function of the safety pin and pressure gauge
Describe the strictly limited operational duration of different extinguisher sizes
Determine the appropriate "early-stage" scenarios for safe extinguisher use

Course Overview

In a fire, you have seconds to act. Do you know if your tool will last long enough?A fire extinguisher looks simple, a tank, a handle, and a hose, but in the chaos of an emergency, "simple" can quickly become confusing. This training short breaks down the anatomy of the device so you aren't fumbling with the mechanics when the heat is on. We explain the vital function of the safety pin and how to read the pressure gauge in a single glance.But the most shocking takeaway? The time limit. Many people assume they have minutes of fighting power, but the reality is much shorter. Do you know exactly how long a standard "5 ABC" extinguisher lasts before it runs dry? The answer might terrify you. Watch this video to learn the true limitations of portable extinguishers and why recognizing an "early-stage" fire is the difference between being a hero and becoming a victim.

Compliance Standards & Regulations

This course references the standards and regulations listed below.

29 CFR 1926.150 and 1910.157

Super Flexible Formatting

You’ll never find yourself scratching your head, trying to figure out why
you can’t get our videos to play or courses loaded into any platform.

Access courses
in our EHS Software.

View this course in a classroom
environment, or assign it to your
team individually with testing
and recordkeeping capabilities.

Load courses
into your platform.

Each title includes an embed
feature that allows users to add
videos to their existing training
platform or LMS.

Access courses
in our LMS.

View this course in a classroom
environment, or assign it to your
team individually with testing
and recordkeeping capabilities.

Not Ready to Sign Up?
No Worries. Here’s Some Helpful Info.

What are the main components of a portable fire extinguisher?


The main components are the high-pressure storage vessel for the agent, the handle, the tube/siphon, the nozzle, a safety pin, and a pressure gauge.


What is the purpose of the safety pin and pressure gauge?


The safety pin ensures against accidental release, and the pressure gauge allows for easy confirmation of the charge amount.


What are the typical extinguishing agents found in a portable extinguisher?


The most common agents are dry chemical, carbon dioxide ($\text{CO}_2$), or air-pressurized water.


How long does a small portable extinguisher typically last?


A relatively small dry chemical version (e.g., 5 ABC) might not even last 10 seconds before it is effectively emptied.


What size of fire is a portable extinguisher designed to put out?


Portable fire extinguishers are designed only to put out an early-stage fire and are meant to stop a small fire from becoming a bigger one in a short time.
